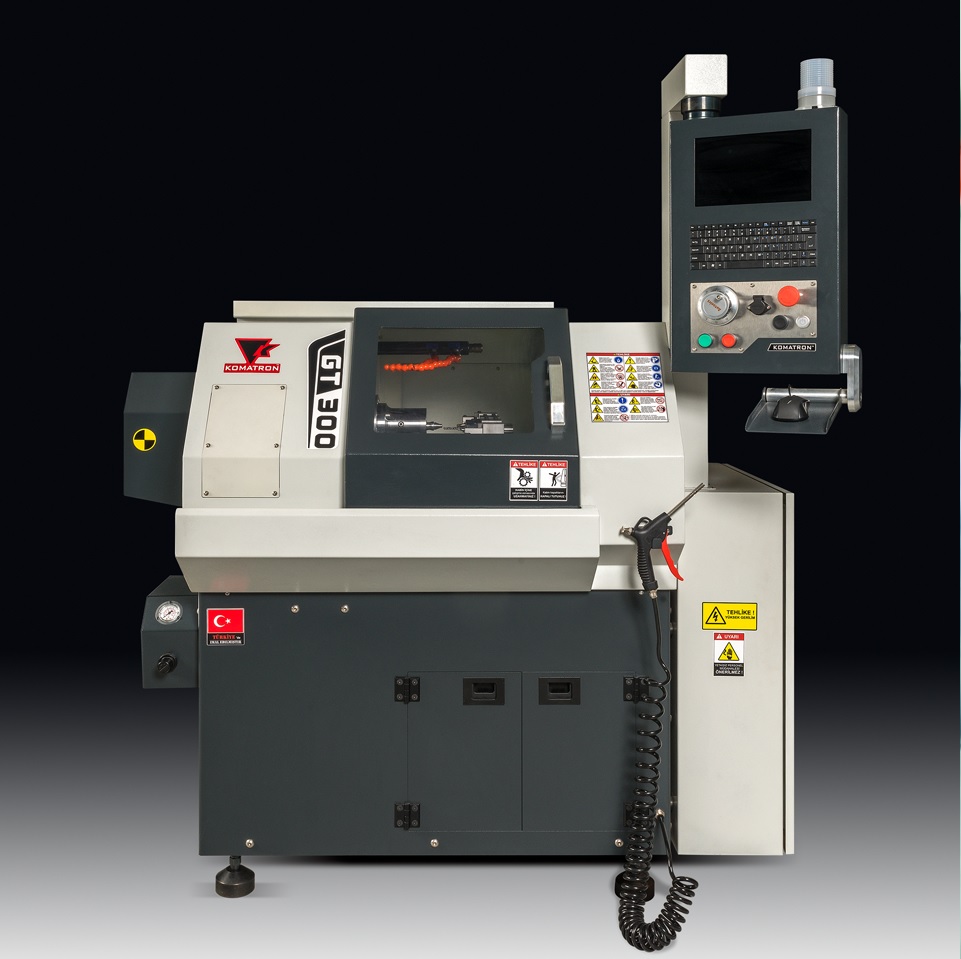

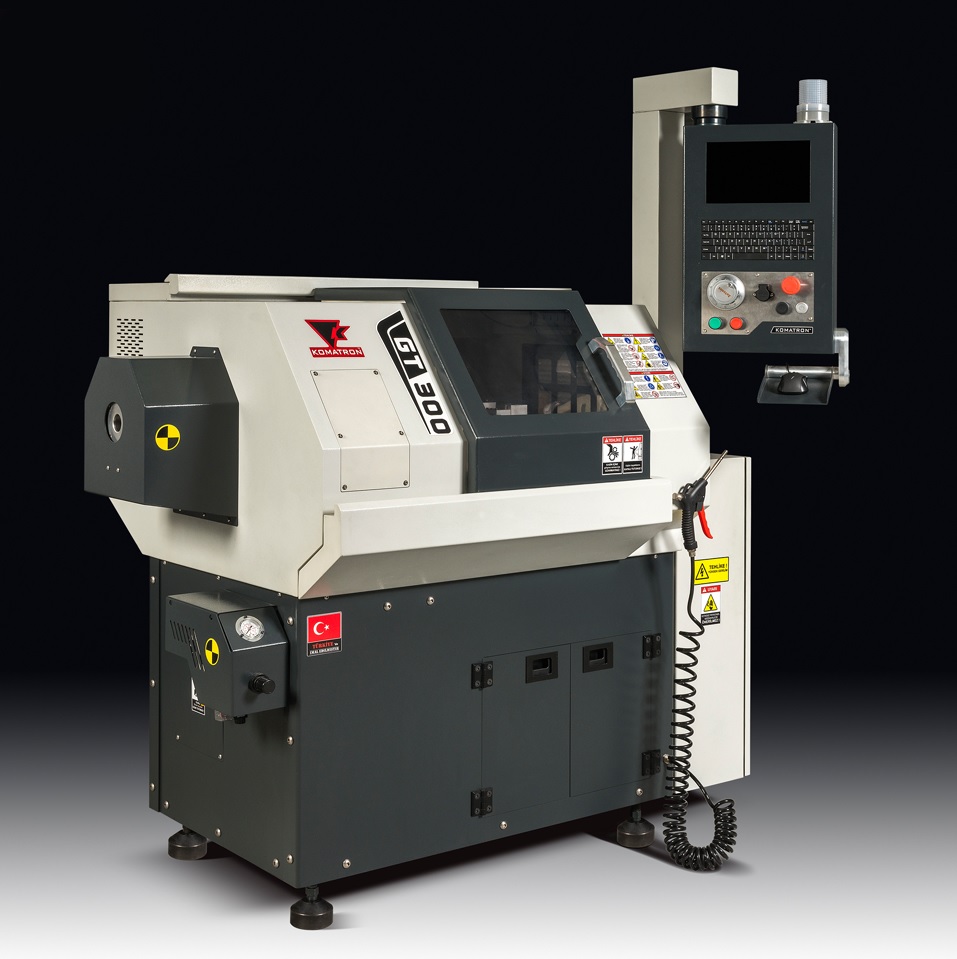

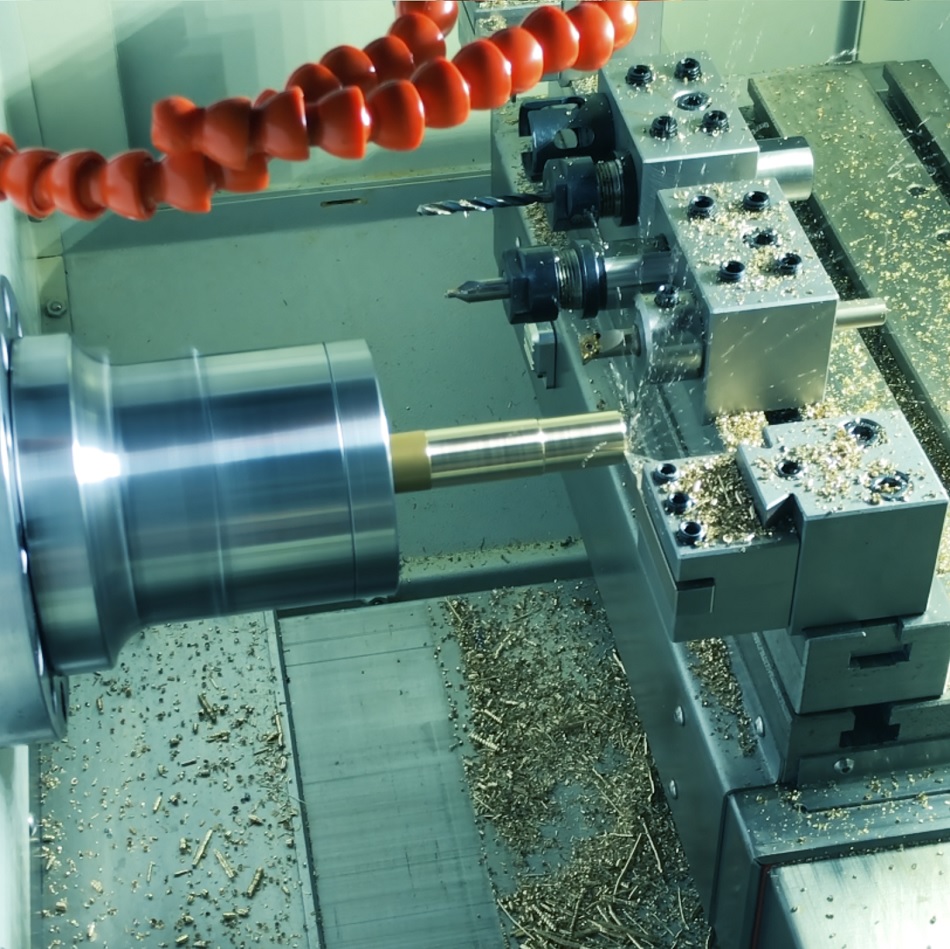

Komatron GT 300 Cnc Gang Lathe Cnc Lathe Request Quote

Rigid Compact Design

Thanks to rigid cast iron frame and spindle design,
high surface quality is achieved. With the compact design
GT300 can be moved easily with an equipment dolly.

Versatile

Use your bigger workhorses efficiently! GT300 offers
multiple solutions for secondary operations and small parts.

Innovative Solutions

Offering affordable integrated bar feeders and
application specific automatic part loaders, provides
significant operation efficiency increase!


Specifications

Maximum Turning Diameter 110 mm
Maximum Bar Diameter 30 mm
Spindle Bore 32 mm
Spindle Motor 3 Kw
Maximum Rpm 3000 rpm
X Axis Travel 300 mm
Z Axis Travel 220 mm
Rapid Traverse 12 mt/dk
Repeatability 0,005 mm
Coolant Tank 30 Lt

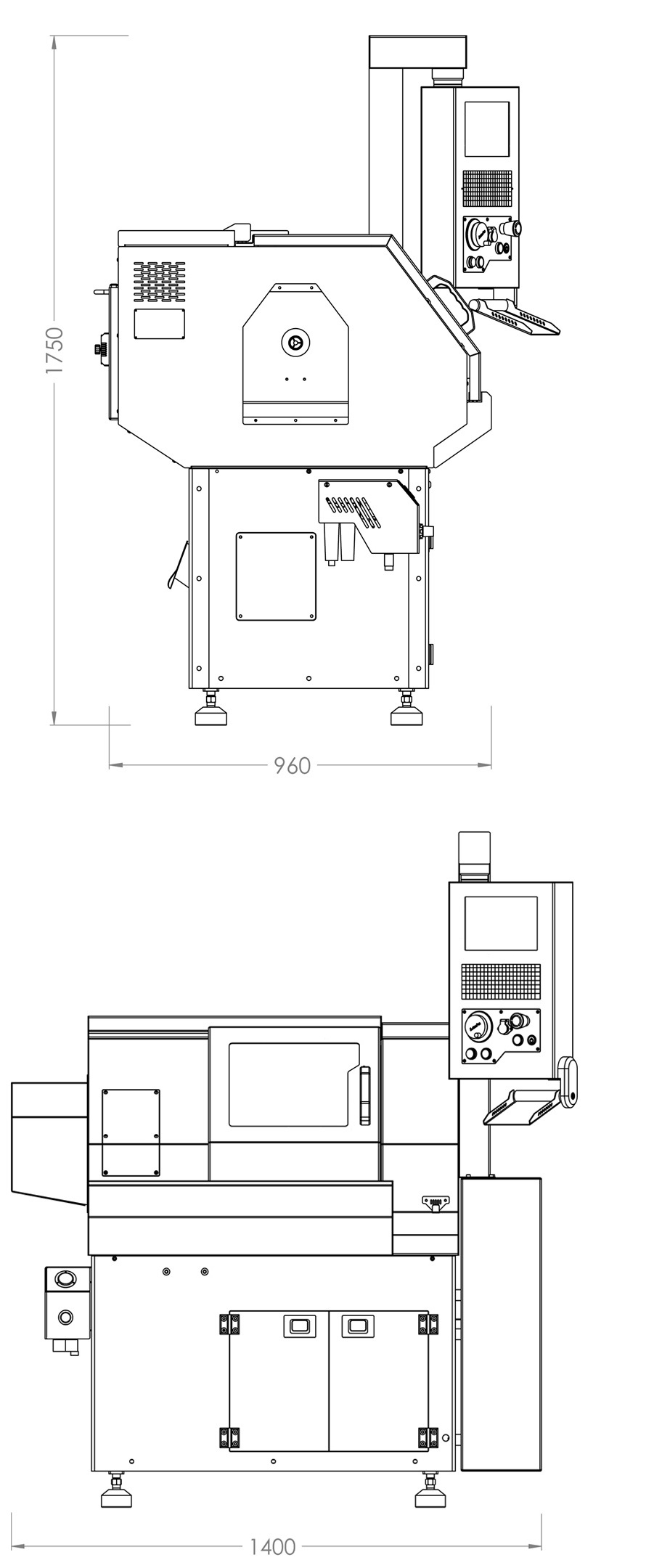

Dimensions (WxLxH) 960 X 1400 x 1750 mm
Machine Weight 650 Kg
Air Requirement 6 Bar
Power Requirement 3 Faz 380V-12 Amper

Linear Rails and Precision Ballscrews
Central Grease Lubrication
Chip Conveyor
LED Enclosure Light IP65
